Description

❈System Config:
Product Model : Z83-F 32GB
Product Dimension: 120*120*27mm
Language : Multi -language
OS: Support Windows 10 Pro 64-bit
Intel CPU: Intel Atom x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
Processor Graphics: Intel HD Graphics 400

Installed RAM: LPDDR3 4GB
System Disk: (C:) 32GB
Ethernet: 1000Mbps LAN
WIFI: IEEE 802.11a/b/g/n，2.4G+5.8G
Bluetooth: BT 4.0
Antenna: Built-in antenna for WIFI
Expand Memory: SD Card (Support 128GB)

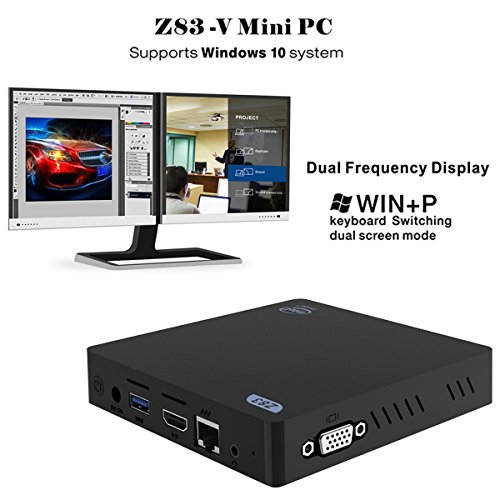

Dual screen display: Support

❈Performance:
Cores: 4
Threads: 4
Processor Base Frequency: 1.44 GHz
Burst Frequency: 1.92 GHz
Scenario Design Power (SDP): 2 W
Cache: 2 MB
Instruction Set: 64-bit
Intel Identity Protection Technology: yes
Max Resolution(HDMI 1.4): 1920*1080

❈Button & Ports:
1*Power Button
1*DC in Port
1* Standard USB 3.0 Port
2* Standard USB 2.0 Port
1*HD Type Port
1*RJ45 Network Port (1000Mbps network connection)
1*Headphone Microphone Jack
1*Reset Hole
1* SD Card Slot

❈Environment:
Work Environment: 5°C — 35°C，30%–90% Humidity
Storage Environment: -20°C — 60°C，10%–90% Humidity

❈Package Included:
1* Z83-F MINI PC
1*UK Power Adapter (DC12V 1.5A (100-240V, 50/60Hz)
1* HDMI Cable
1* English Manual
1* Wall Mount Bracket
4GB LPDDR3 RAM + 32GB eMMC System Disk + 128GB Max Extended Capacity, download your favorite movies and shows with smooth and needn’t to to worry about the capacity.(SD card is not included).l HD graphics 400. Provide you a simple and efficient way of working.
Powered by Intel Cherry Trail X5-Z8350 (2M Cache, up to 1.92 GHz), Intel HD Graphics and latest Windows 10 Pro 64-bit System, ideal for work, play and entertainment, providing awesomely fast start-up, seamless web browsing, multi-tasking

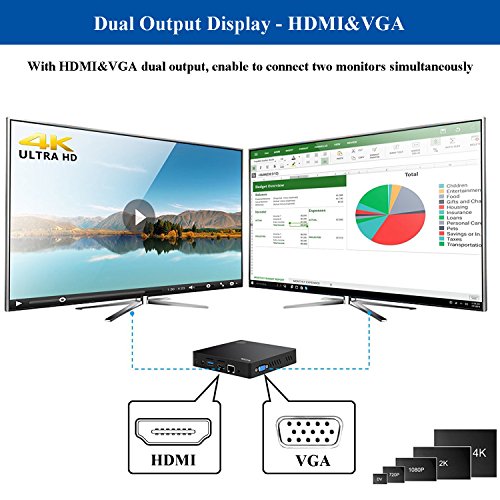

Equipped with HDMI output. 4K@30Hz HD video playback, delight in producing stunning visuals, native 4K output & multi-display.

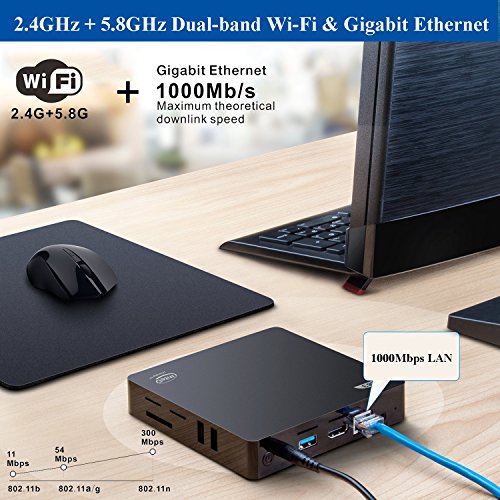

IEEE 802.11a/b/g/n 2.4G+5.8G Dual-Band Wi-Fi, Gigabit Ethernet 1000MB/s and Bluetooth 4.0, Maximum theoretical download speed, a variety of options, transmission faster, download faster.
【Support Auto Power On After Power Failure】【Package Content: 1* Z83-F MINI PC, 1* UK Power Adapter, 1* HDMI Cable, 1* English Manual, 1* Wall Mount Bracket】
