The monitor will start up automatically, and synchronously display the video from rearview camera when you’re backing your car; the monitor will close itself after backing.
* Screen Size: 4.3 inch
* Pixels: 640*480 Resolution, Display Format: 16:9
* System: PAL/NTSC
* Auto-switch when reversing
* Car monitor color: Black
* Power consumption: 3W
* Power supply: DC 12V
* Material: ABC
* Operation temperature:
– Work: -10 to 50 degrees C
– Storage: -30 to 70 degrees C

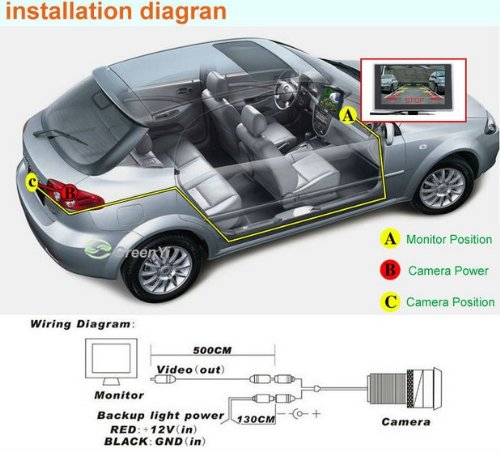

Please Connect the Rearview camera’s power cable with Reversing lamp, and connect camera’s video cable with LCD’s white cable (Video V2), then the LCD will show Camera’s video when you are Reversing, and stop playing movie(auto switching).
1 * 4.3 Inch TFT-LCD Monitor
1 * Power Cable
1 * User Manual

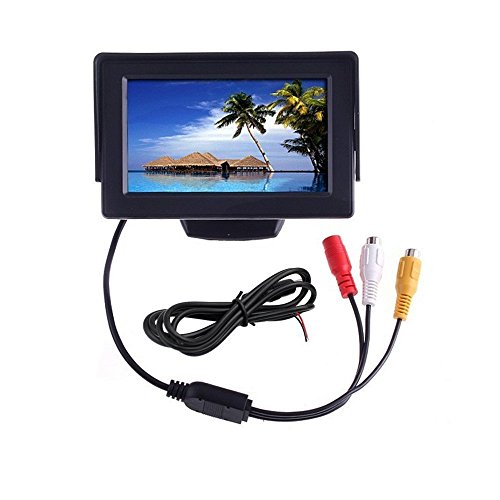

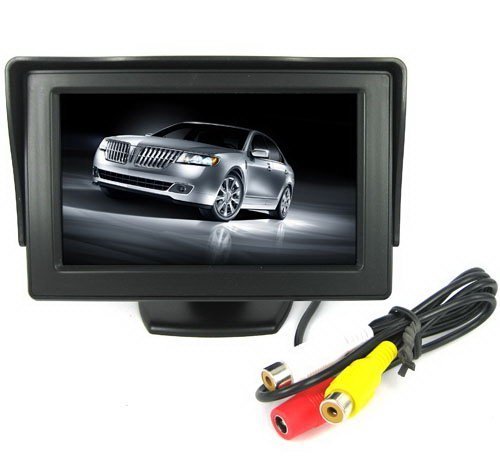

4.3-Inch TFT-LCD Car Rearview Monitor, 640*480 Resolution, 16:9 Display Format.

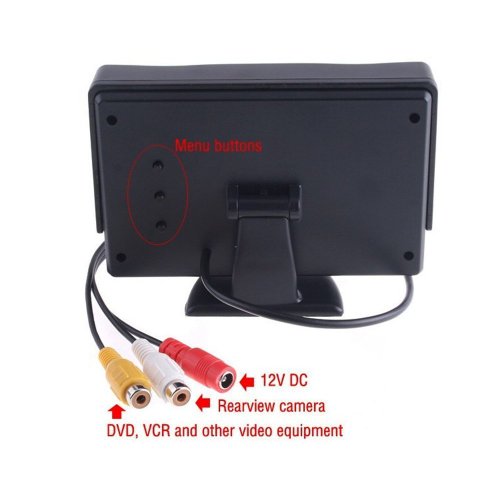

With 2 AV input. AV1 connects to car DVD, VCR and other video equipment. AV2 to car backup camera.
Support Car DVD, VCD, camera, for STB, for atellite receiver, and other video equipment.
Support multifunction display, no Audio input or output.
Easy to install and use, video system: NTSC / PAL.
